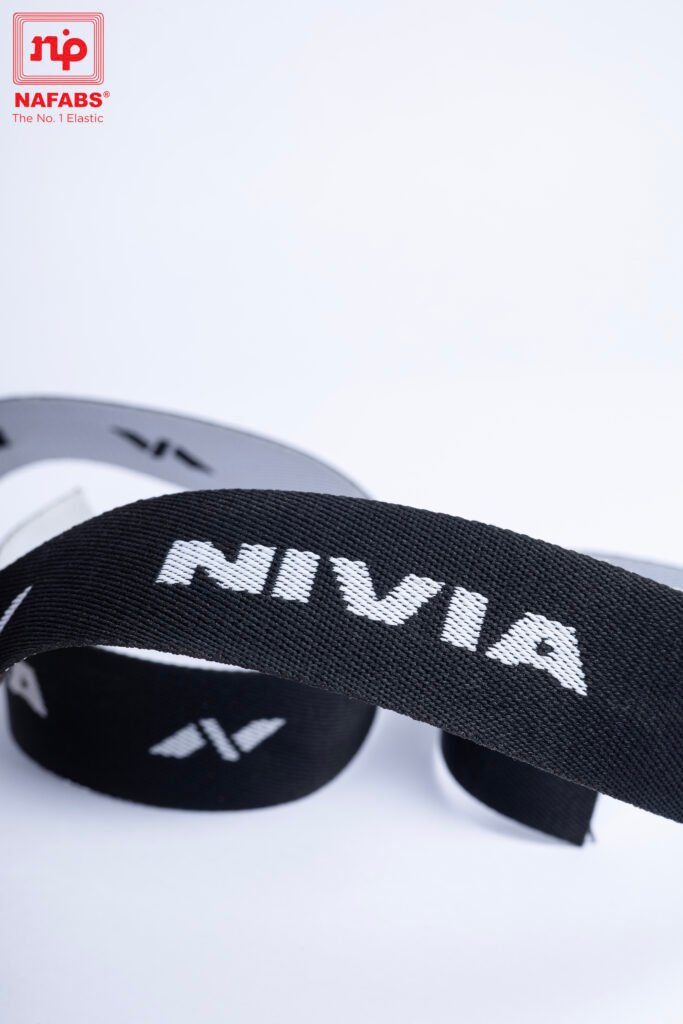

Our jacquard tapes and elastics combine functional stretch with woven-in patterns, logos, and branding — created using jacquard looms that weave design directly into the fabric structure. Ideal for brands that need both performance and visual identity built into a single narrow fabric.
Material & Construction
Jacquard tapes and elastics are produced using jacquard looms capable of weaving intricate patterns, text, and multi-color designs directly into polyester, nylon, and elastic yarn constructions — no printing or embroidery required. This allows precise, durable branding that holds up under the same stretch and wear conditions as the base fabric.
Key Specs
| Specification | Typical Details |
|---|---|
| Width Range | 10 mm – 150 mm (≈ ⅜ inch – 6 inches) |
| Elongation / Stretch Ratio | Non-elastic tapes: Minimal stretch; Elastic jacquards: 80% – 150%, depending on construction and elastane content |
| Material Composition | Polyester / Nylon / Cotton yarns; elastic variants incorporate Elastane (Spandex) or Rubber elastic yarns |
| Tensile Strength | Approximately 200 – 1,000 N, depending on width, yarn composition, thickness, and construction |
| Standard Put-Up / Packaging | 25 m, 50 m, 100 m, and 200 m rolls; customized lengths available |
| Construction | Jacquard-woven narrow fabric featuring intricate woven patterns, logos, lettering, stripes, and customized designs |
| Thickness | Approximately 0.6 mm – 3.0 mm, depending on yarn type, pattern complexity, and construction |
| Stretch Recovery | Elastic variants offer excellent recovery and shape retention after repeated extension cycles; non-elastic variants maintain dimensional stability |
| Available Colours | Wide range of standard colours with custom colour matching and multi-colour jacquard designs available |
| Surface Options | Plain-ground jacquard, raised patterns, woven logos, lettering, stripes, textured finishes, and customized branding designs |
Customization Options
We offers comprehensive customization capabilities to help brands create products that align perfectly with their functional, technical, and aesthetic requirements. From material selection and dimensions to branding and specialized finishes, we deliver tailored narrow fabric solutions for diverse applications and industries.
01. Custom Widths
Narrow fabrics manufactured across multiple widths to match specific product designs and application requirements.
02. Pattern & Logo Weaving
Brand names, logos, and multi-color patterns woven directly into the tape — permanent and wash-durable, unlike printed or embroidered branding.
03. Material Selection
Choice of polyester, nylon, or elastic yarn blends, selected for stretch, durability, and the finish your design calls for.
04. Stretch & Firmness Tuning
Elongation and recovery calibrated to spec — from soft branded trims to firmer structural tapes.
05. Color & Finish Options
Multi-color jacquard combinations and surface finishes to match brand guidelines precisely.
06. Custom Packaging & Put-up
Roll lengths, spool formats, and packaging configured to your production line or retail requirements.
Applications
Jacquard tapes and elastics are widely used where branding and function combine:
● Waistbands and garment trims
● Bag and luggage straps
● Footwear branding tapes
● Activewear and sportswear labels
● Accessories requiring woven-in logos or patterns
Quality & Compliance
Every batch is manufactured under consistent process controls to maintain pattern accuracy, color consistency, and stretch performance across production runs. Per-lot QC certificates are available on request.
Production & Supply Capabilities
With 45+ years of manufacturing experience and a production capacity of 250M meters, NAFABS supplies jacquard tapes and elastics at both prototype and full OEM volumes. Consistent lead times and lot-to-lot pattern accuracy support brands scaling from sample runs to recurring bulk orders
Why NAFABS
NAFABS combines technical manufacturing expertise with detailed jacquard capabilities to create tapes and elastics that deliver both performance and visual impact. From woven logos and branding to custom colours and patterns, every construction can be tailored to your product.
